12" SoloX L7X 1 Ohm

Car Audio

12" SoloX L7X 1 Ohm

Powered Sub 80 49L7X121

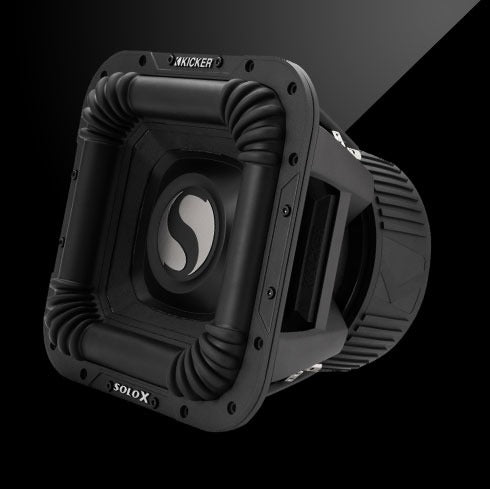

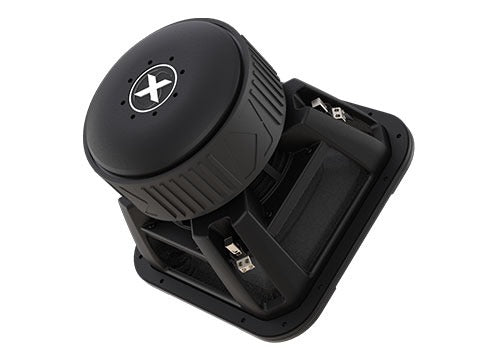

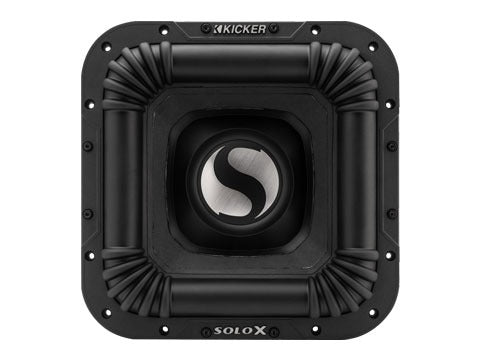

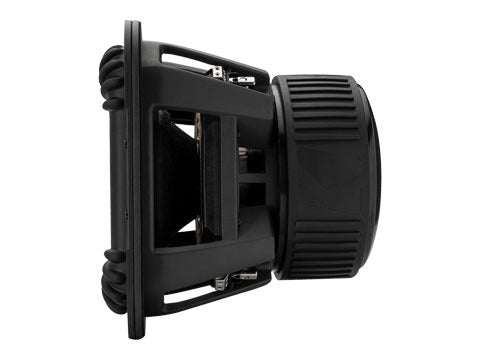

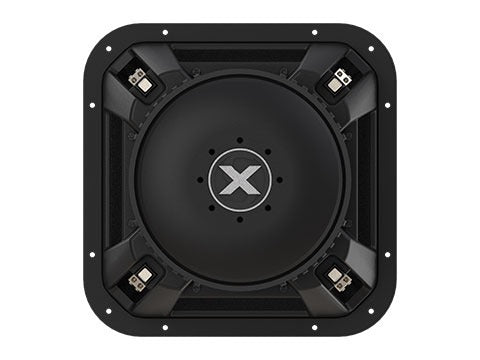

The KICKER SoloX L7X is our most advanced bass technology with extreme power handling – made to turn heads!

Incomparable

SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.

Features:

  1. Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
  2. Forced Air Cooling™
  3. Three-inch, aluminium voice coil former
  4. Dual-spider suspension
  5. Double-pressed pulp cone
  6. Heavy-duty UV-resistant Santoprene surround
  7. Custom rubber magnet boot
  8. Cast-aluminum basket
  9. Single 8 AWG terminal and dual 8 AWG terminal block
  10. Triple-Stacked Ferrite Magnet

Specifications

  • Thiele/Small Parameters

    49L7X121 T/S Parameters

  • Size (in, cm)

    12, 30

  • Rated Impedance (Ohms)

    1 DVC

  • Rec Amp Power rms

    1000-2000

  • Frequency Response

    20-100

  • Magnet Diameter (in, cm)

    8-11/16, 22

  • Total Magnet Weight (oz, kg)

    406, 11.5

  • Voice Coil Diameter (in, mm)

    3, 75

  • Voice Coil Winding Width (in, mm)

    2.5, 62.5

  • Product Dimension Sheet

    49L7X12 Dimensions

  • Top Plate Thickness (in, mm)

    0.5, 13

  • Xmax (in, mm)

    1.25, 31.25

  • Mounting Cutout (in, cm)

    11-1/16, 28.1

  • Mounting Depth (in, cm)

    10-1/8, 25.7

  • Recommended Vented Box Volume (Cu. Ft., L)

    3, 84.9

  • Port Opening (in x in, cm x cm)

    3.5 x 13, 9 x 33

  • Port Length (in, cm)

    36.5, 93

  • Vented Enclosure Tuning Frequency (Hz)

    31

  • Warranty

    When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this SOLO X product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
