CX1200.1

Car Audio

CX1200.1

1200W Mono Amplifier

Powered Sub 80 46CXA12001

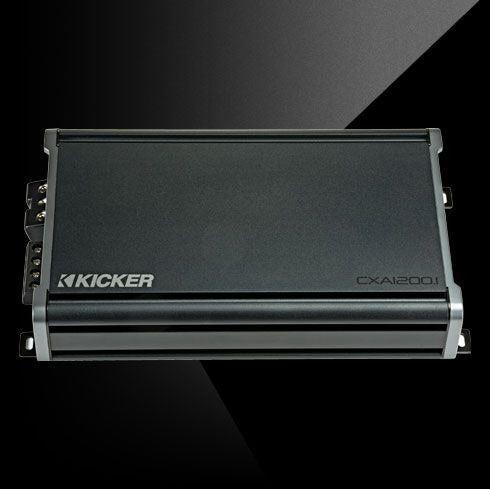

The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.

Mono Monster

This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.

This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.

Features

  • Efficient Class-D amplifier
  • Three-second turn-on/off delay to eliminate unwanted interference
  • Variable 12dB crossovers provides control to dial in perfect sound
  • KickEQ™ 6dB variable bass boost for those additional low frequencies
  • 24dB subsonic filter for protection from potentially damaging frequencies
  • FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Accepts up to 40-volt input signal
  • Small footprint for easier installation
  • Compatible with CXARC Remote Bass Controller

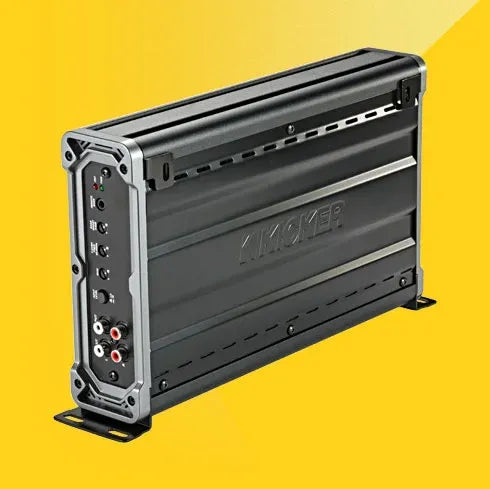

  • Vertical mounting hardware included for another unique look

Specifications

  • MODEL

    CXA1200.1

  • Power (watts/ch) 4 Ohm

    600x1

  • Power (watts/ch) 2 Ohm

    1200x1

  • Power (watts/ch) 1 Ohm

    1200x1 +/-10%

  • CXRC Remote Bass Capable (sold sep.)

    yes

  • Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)

    12, 30.6

  • Frequency Response (Hz):

    25-200Hz

  • Input Sensitivity:

    125mV-5V (Low Level)
    1V-40V (High Level)

  • Signal-to-Noise Ratio:

    95dB

  • Active Crossover:

    Variable Lo-pass 50Hz–200Hz, 12dB/octave

  • Subsonic Filter:

    25Hz @24dB/octave

  • KickEQ™ Boost

    Variable 0-6dB @40Hz
