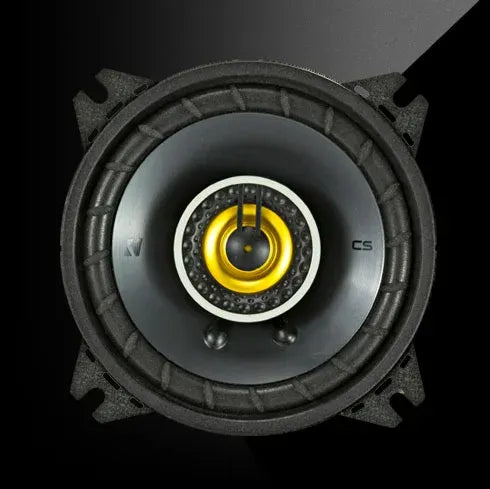

CS Series CSC4

Car Audio

CS Series CSC4

50W 4" Pair Coaxial Speakers

Powered Sub 80 46CSC44

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

CS Series CSC4

The CS Four Inch Coaxial Speakers are the best way to upgrade your speakers.

These coaxial speakers are a significant upgrade in your sound. A stamped steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality. Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles.

These CS speakers work best with 50 watts of recommended power. See below for more details.

Features

  • Fits nearly every car made
  • Zero-protrusion tweeters to fit nearly any factory depth
  • Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
  • UV-treated poly-foam surround resists heat or direct sunlight
  • Large woofer magnet in a heavy-duty motor for ultra-clean bass
  • PEI-tweeter construction provides superb clarity
  • Neodymium tweeter magnets allow for increased volume in high frequencies
  • Steel mesh grilles included for speaker protection

Specifications

  • Speaker Design

    2 - way

  • Woofer Size | in [mm]

    4 [100]

  • Tweeter Size | in [mm]

    1/2 [13]

  • DC Resistance | ohm

    3.5

  • Peak Power | Watts

    150

  • Continuous Power | Watts, RMS

    50

  • Sensitivity [SPLo] | dB @ 1W, 1m

    88

  • Effective Frequency Range | Hz

    60-20k

  • Mounting Hole Diameter | in [mm]

    3 3/4 [95]

  • Top Mount Depth | in [mm]

    1/4 [6]

  • Bottom Mount Depth | in [mm]

    1 13/16 [46]

  • Tweeter Protrusion | in [mm]

    0

  • Grilles

    Yes

  • Tweeter Magnet Material

    Neodymium

  • Tweeter Dome Materia

    PEI [polyether imide

  • Tweeter Design

    Balanced dome

  • Woofer Cone Material

    Polypropylene

  • Woofer Surround Material

    Polyester foam
