15" L7R
  • 15" L7R
  • 15" L7R
  • 15" L7R
  • 15" L7R

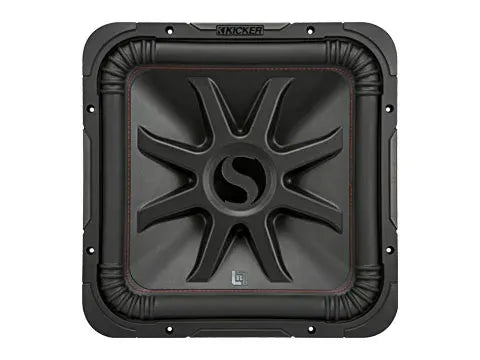

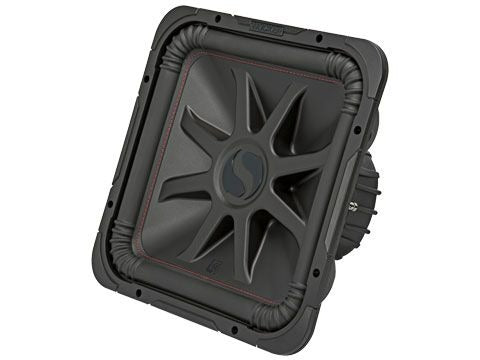

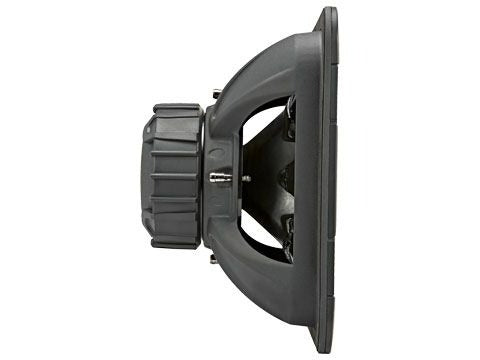

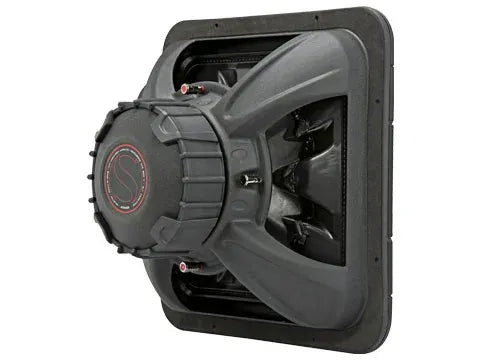

15" L7R

Car Audio

15" L7R

2 Ohm Subwoofer

Powered Sub 80 45L7R152

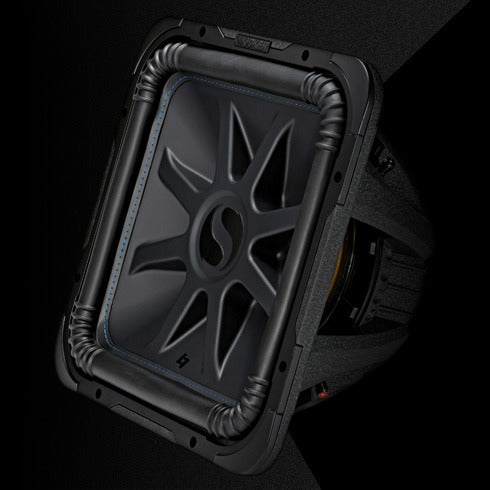

The L7R Square Sub moves more air, so you get more bass. The design was invented right here in Stillwater, Oklahoma – made to deliver unprecedented efficiency and huge volume!

The Original

Originator, n. (əˈrijəˌnādər): see KICKER

The engineers at KICKER invented the original square sub right here in the heart of America. Designed to give you more bass - yet take up no more air space - than a standard round sub. Welcome to the miraculous world of the L7R!

  • Dual two-Ohm Voice Coil
  • Wrap Around Gasketing
  • Patented Ribbed Corners
  • Injection-Molded SoloKon™ Woofer
  • SoloKon™
  • 360-Degree Back Bracing
  • UniPlate™ Back Plate And Pole Piece
  • Bumped Back Plate
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Steel Basket With Spoke Design
  • Nickel Plated Speaker Terminals

Specifications

  • Thiele/Small Parameters

    45L7R152 T/S Parameters

  • SIZE [in, cm]:

    15, 38

  • IMPEDANCE [Ohms]:

    2 DVC

  • Recommended Amplifier Power (watts RMS

    900

  • Peak Power (watts, per ANSI/CTA-2031-A)

    1800

  • SENSITIVITY [dB 1w/1m]:

    88.05

  • MOUNTING DEPTH [in, cm]:

    8 -3/8, 21.5

  • MOUNTING DIAMETER [in, cm]:

    13-3/4, 34.9

  • MIN SEALED BOX VOL [cu. ft, L]:

    1.5, 42.48

  • MAX SEALED BOX VOL [cu. ft, L]:

    3, 85

  • MIN VENTED BOX VOL [cu. ft, L]:

    3, 85

  • MAX VENTED BOX VOL [cu. ft, L]:

    6, 170

  • What's in the Box:

    1 - 15" Subwoofer, 1 - install manual, 2 - Kicker stickers

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
