12" L7R

Car Audio

12" L7R

2 Ohm Subwoofer

Powered Sub 80 45L7R122

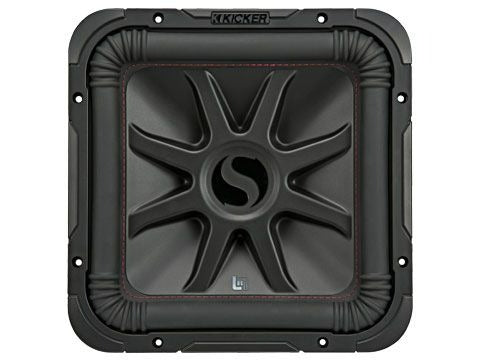

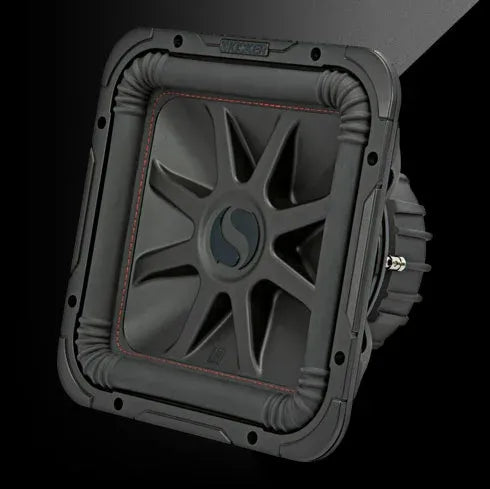

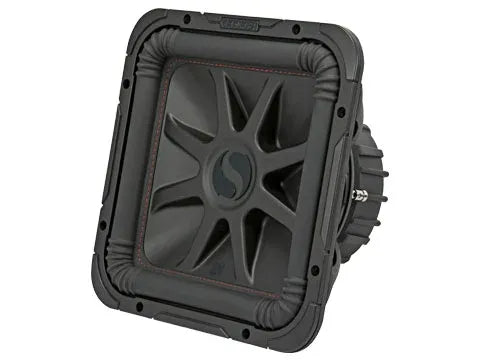

The 12-inch L7R Square Subwoofer moves more air and delivers bigger bass, so you get more bump out of every watt!

BIG BASS. SAME SPACE.

The engineers at KICKER HQ designed the L7R to give you more bass than a circular sub, without a larger enclosure. Welcome to the world of square sub perfection!

  • Dual two-Ohm Voice Coil
  • Wrap Around Gasketing
  • Patented Ribbed Corners
  • Injection-Molded SoloKon™ Woofer

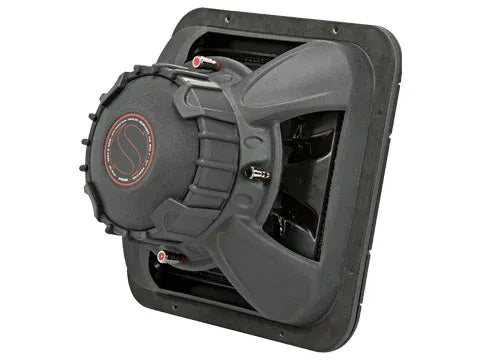

  • 360-Degree Back Bracing
  • UniPlate™ Back Plate And Pole Piece
  • Bumped Back Plate
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Steel Basket With Spoke Design
  • Nickel Plated Speaker Terminals

The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

Specifications

  • Thiele/Small Parameters

    45L7R122 T/S Parameters

  • SIZE [in, cm]:

    12, 30

  • IMPEDANCE [Ohms]:

    2 DVC

  • Recommended Amplifier Power (watts RMS)

    600

  • Peak Power (watts, per ANSI/CTA-2031-A)

    1200

  • SENSITIVITY [dB 1w/1m]:

    86.7

  • MOUNTING DEPTH [in, cm]:

    6-7/8, 17.4

  • MOUNTING DIAMETER [in, cm]:

    11-1/16, 28.1

  • MIN SEALED BOX VOL [cu. ft, L]:

    88, 24.92

  • MAX SEALED BOX VOL [cu. ft, L]:

    2, 56.64

  • MIN VENTED BOX VOL [cu. ft, L]:

    1.75, 49.6

  • MAX VENTED BOX VOL [cu. ft, L]:

    3.25, 92

  • What's in the Box:

    1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
